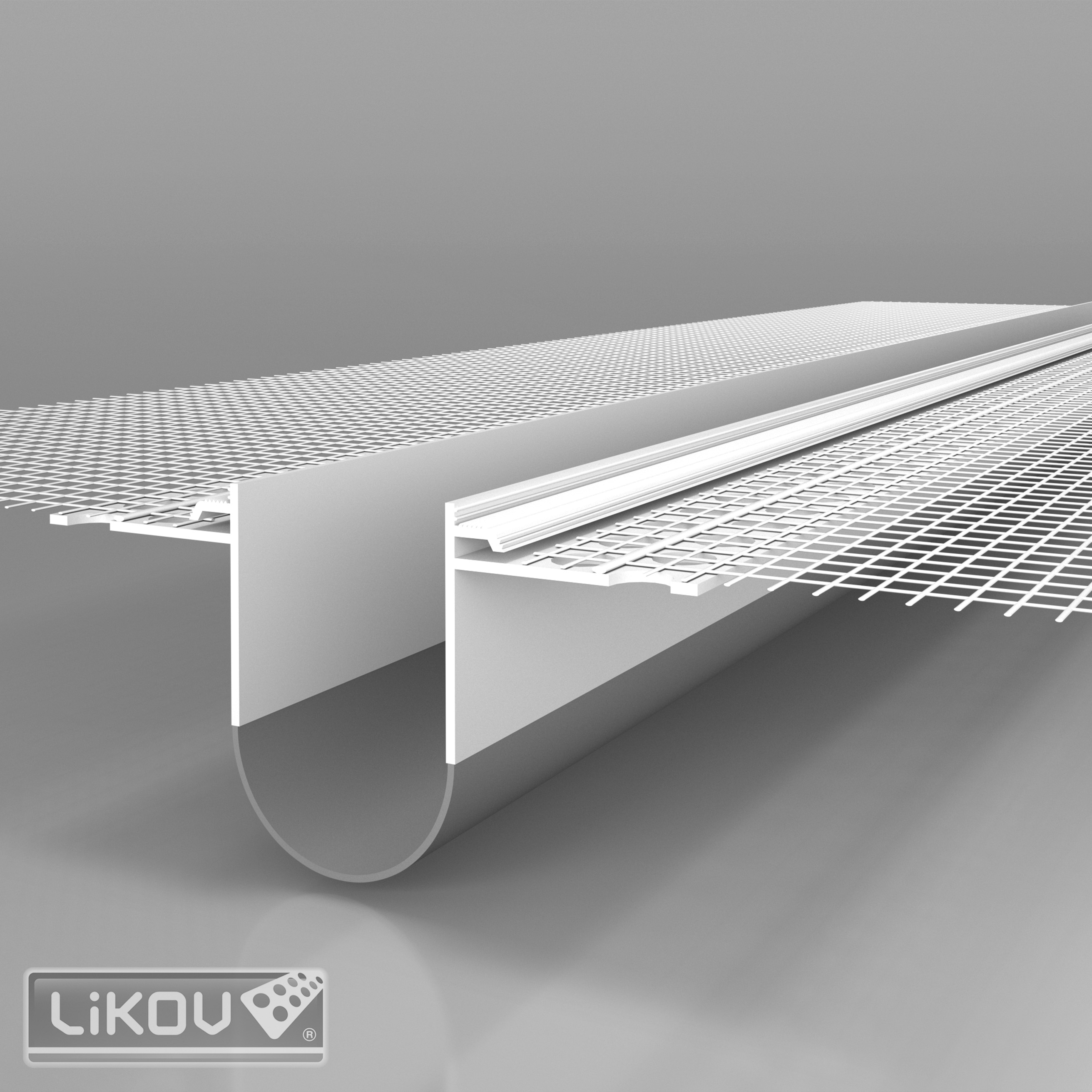

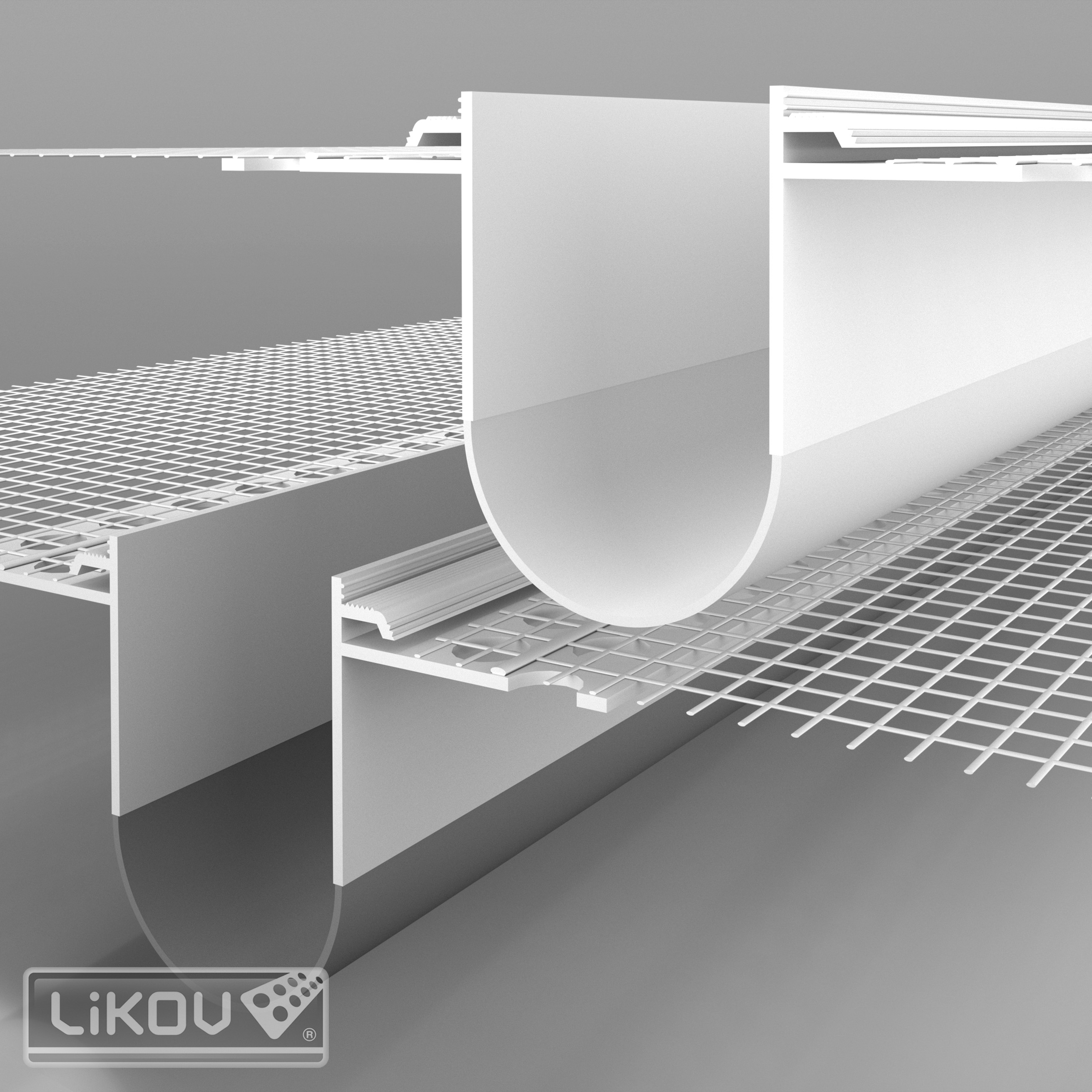

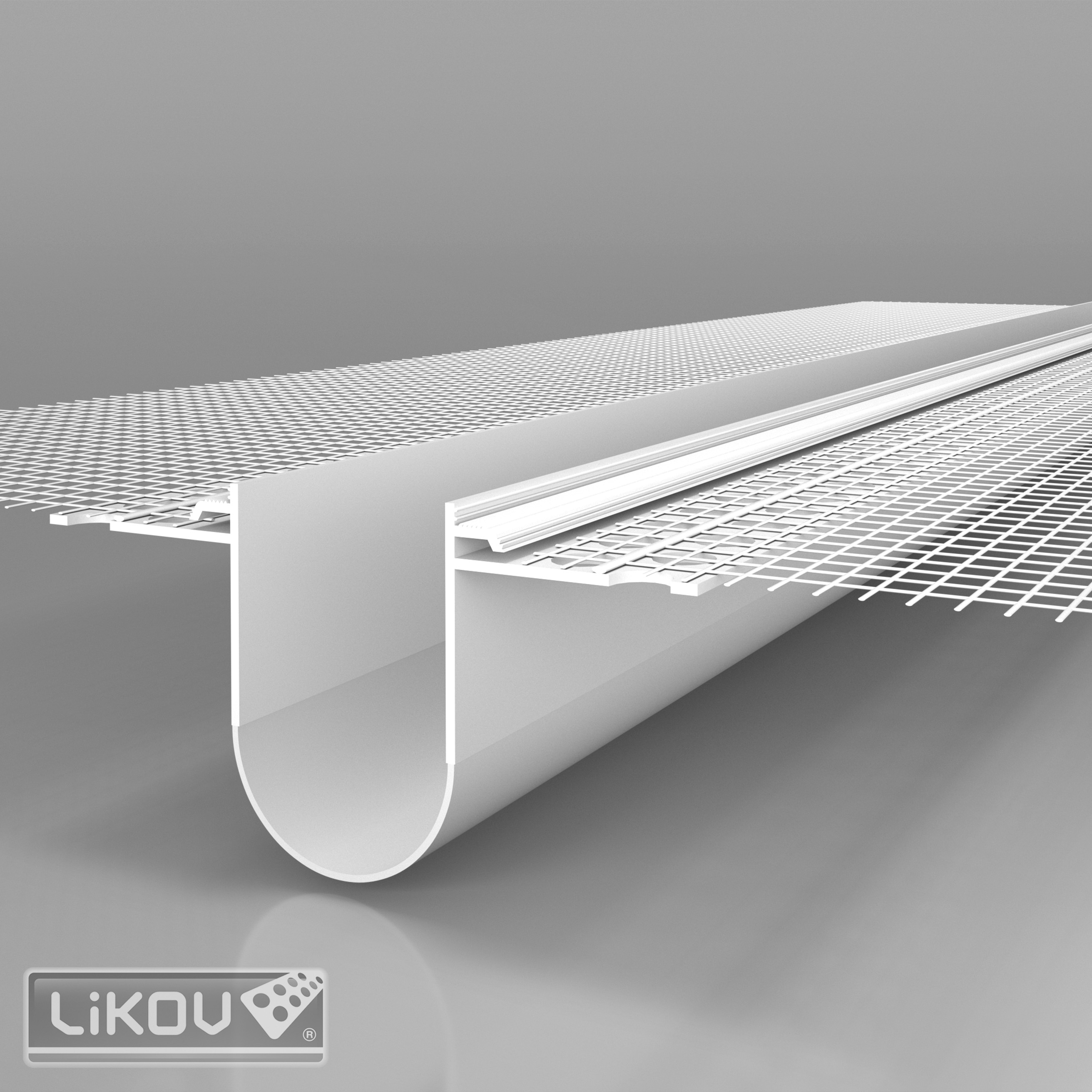

LD-NH PVC 2D continuous expansion bead

LD-NH 2D continuous expansion bead with glass fibre mesh for joining separate surfaces and forming a visible expansion joint in the thermal insulation system - ETICS

Material

  • PVC
  • softened PVC
  • glass fibre mesh

Features and benefits

  • recommended joint width 15 – 20 mm
  • package contains 48 pcs of connecting pegs free of charge
  • grooves ensuring clean finishing of plaster layers
  • high-quality joining of separate surfaces expected to move mutually
  • the expansion joint is protected against weather effects
  • prevents penetration of water into the system
  • invisible edges, the plastic part is hidden under the plaster
  • overlapping soft strips for watertight connection of the beads
  • plaster [mm]: 6
type number length [m] package [m] pallet [m]
LD-NH PVC 180° 06/2,5m expansion bead 2D
 LD-NH 06 180° grey 181.0625 2,5 62,5 1 875
LD-NH PVC 180° 06/2,5m WHITE expansion bead 2D
 LD-NH 06 180° white 181.0625.50 2,5 62,5 1 875
type: LD-NH 06 180° grey
number: 181.0625
length [m]: 2,5
package: 62,5 m
pallet: 1 875 m
type: LD-NH 06 180° white
number: 181.0625.50
length [m]: 2,5
package: 62,5 m
pallet: 1 875 m
